MACS Recommended Service Procedures
MACS Recommended Service Procedures © MACSW December 2005
1 of 23 Revision December 2005
MACS Recommended Service Procedures
Initial Customer Contact
It is important to obtain information from the customer identifying the problem and any
previous servicing history prior to attempting repair of the system.
• Use of the MACS “Air Conditioning & Heater Customer Questionnaire” will help
identify the problem.
• Identify service activity on MACS “A/C – Heating – Ventilation – Cooling System
Checklist.”
Identification of Type of Service
Mobile A/C systems are an integral part of the total vehicle and operation of engine
cooling fan(s) and the A/C compressor can be controlled by the vehicles’ computer
systems resulting in a direct effect on system operation.
Cooling Operation
• Lack of cooling can be due to many reasons including:
o Compressor operation
o System Refrigerant Charge and Type
ƒ Contaminated refrigerant
ƒ Air in system
ƒ Too much oil in system
ƒ Sealant in system blocking/restricting controls/screens
o System controls
ƒ Including temperature door movement and proper position
ƒ Defective/improperly operating (setting drift) thermostatic expansion
valve
ƒ Restricted or missing orifice tube
ƒ Defective/improperly operating compressor clutch cycling switches
ƒ Defective/improperly operating evaporator temperature
sensors/thermistors or thermostatic switches
ƒ Defective control valves (in variable displacement compressors)
o Airflow circuits
ƒ Clogged evaporator core fins (or condensate screen/filter)
ƒ Plugged cabin air filter
MACS Recommended Service Procedures © MACSW December 2005
2 of 23 Revision December 2005
o System mode door position
o System fan motor, fan clutch and electrical controls
o Condenser -- Insufficient airflow, restriction and/or capacity or improper
substitute
o Cooling System – Insufficient radiator performance or coolant condition
and level
o Material between radiator and condenser
o Other cooling system malfunctions such as low coolant, a stuck closed or
improperly functioning thermostat, lack of or improper electric cooling fan
operation, defective mechanical fan clutch, defective or incorrect pressure
cap, defective or improperly operating coolant control valve, etc.
• Outside air ingestion
• Internally blocked components (such as condensers, orifice tubes, etc.)
• Replacement parts that do not meet or exceed the performance of OEM
components
Heating - Defrosting Operation
The basic areas to check include:
• Internally restricted heater core, flow restrictors or hoses
• Coolant flow/coolant pump operation
• System controls
o Including temperature door movement and proper position
o Operation of heater engine coolant flow valve, if installed and part of
system
o Pulse Width Modulated (PWM) temperature control operation of heater
coolant valve and control circuit if installed and part of system
• Airflow circuits
o System mode door function and correct travel positions
o System fan motor and electrical controls
Visual Inspection
Mechanical
• Inspect compressor drive belt
o Improper compressor operation due to:
ƒ Excess wear – cracked – glazed
MACS Recommended Service Procedures © MACSW December 2005
3 of 23 Revision December 2005
ƒ Incorrect tension – causing slippage
o Compressor clutch
ƒ Indication of overheating or slipping
• Due to incorrect air gap
• Oil coating
• Poor electrical connection or low clutch voltage
• Poor electrical ground connection, loose, corroded
• Wrong or improper clutch
Noise or Component Failure
• Inspect for worn – damaged – broken
o Engine mounts
o Check compressor mounting bolts and brackets for proper torque and
attachment
o Engine torque struts
o Improper refrigerant or heater hose routing and mounting
o Improper charge, refrigerant, lubricant or amount
o OEM bulletins
o Aftermarket sealants
Condenser
• Operation of engine cooling fan(s)
o Improper mounting (upside down), loose or missing hardware
o Excessive fan motor current draw
o Broken, cracked or missing fan blades
o Malfunctioning dual function pressure switches (fan operation &
compressor cut-out)
o Missing orifice tube
• Restricted airflow
o Reduced airflow due to:
ƒ Foreign material in fins (bugs, grass, etc.)
• Between condenser and radiator
ƒ Damaged condenser fins
ƒ Missing or misplaced airflow seals
ƒ Improper cooling fan(s) operation
MACS Recommended Service Procedures © MACSW December 2005
4 of 23 Revision December 2005

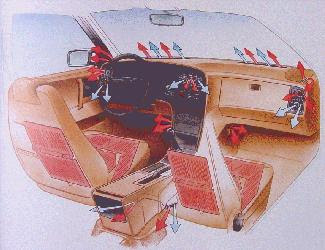

System Airflow
To assure that the system is delivering maximum airflow the following areas should be
inspected for blockage.
• Outside air operation
o Check cowl and system air intake for restrictions
ƒ System air inlet location for
• Debris
• Plugged cabin air filter
• Recirculated air operation
o System air inlet
ƒ Debris
• Plenum-Case/Duct Assembly
o Plugged evaporator inlet filter
o Deteriorated foam seals at ducting in plenum connections
o Evaporator case condensate drain plugged
ƒ (Can result in wet vehicle carpet)
Confirm There Is Refrigerant In System
System Has Pressure
• Determine if the system has refrigerant pressure
o To prevent damage to service equipment from possible refrigerant
contamination, the system refrigerant should be checked with a refrigerant
identifier and sealant detector.
• HFC-134a pressure is approximately the same as the surrounding temperature.
At an area temperature of 75 degrees F. the stabilized system pressure with A/C
system off will be around 75 psig.
o If the engine compartment is hot and system is off, pressure may be
slightly higher.
System Has No Pressure (15-0 PSI)
(Note: If service port valve seals are damaged, they may not allow the valve cores to
depress properly, possibly making it appear that the system does not contain pressure
when it actually does.)
MACS Recommended Service Procedures © MACSW December 2005
5 of 23 Revision December 2005
A visual inspection for evidence of system lubricant on the refrigerant system
component(s) surfaces generally indicates potential refrigerant leak points.
If the system is empty and does not have any refrigerant pressure, there are two
approaches that can be used in an attempt to identify the leak point(s).
Vacuum Method
• Connect a vacuum pump to the system service ports and attempt to draw the
system into a vacuum. If this is successful:
o With vacuum pump off determine if the system will hold vacuum (at least
10 minutes)
o Determine if there is a noise from an identifiable leak point.
• Sometimes reducing the system into a vacuum can result in the leak point
becoming sealed and the leak point not found. To determine if there is a system
leak the pressure method should be used.
Pressure Method
To provide system refrigerant pressure for leak detection, only a partial system
refrigerant charge is required. Generally an amount equal to 20% of the total system
charge will result in a saturated system pressure reading. Once the system contains
both liquid and vapor refrigerant the system pressure will not increase by adding more
refrigerant. (See Figure 1) The refrigerant can be added without evacuating the system
since upon its removal the recycling equipment will remove the air during the recycling
process. Adding refrigerant to a system that did not have pressure will result in a slightly
higher pressure as compared to pure refrigerant in the system.
MACS Recommended Service Procedures © MACSW December 2005
6 of 23 Revision December 2005
Partial Refrigerant Charge
0
20
40
60
80
100
120
Refrigerant
Service Fitting Pressure High/low side
No Vacuum Prior Vacuum
Pure Refrigerant
Refrigerant & Air
Saturated System Pressure with liquid/vapor at 85 degrees F.
Figure 1
• With at least 50-psig system pressure perform the leak checking process.
• If the refrigerant system is to be operated, install the full factory charge amount.
Performance Testing
Upon completion of the initial visual inspection and determination as to whether or not
the system has pressure, it would be best at this time to conduct a system performance
test. Running a performance test can offer an opportunity to see if the system will cool
properly after repair(s) have been performed. It may also help eliminate possible future
concerns and questions.
If it has been determined that the system has a functioning or somewhat functioning
compressor, a sufficient charge of refrigerant should be added to enable the
compressor to operate to complete a performance test of the system.
The performance test may also allow the technician to note if the compressor is
functioning properly, if the compressor is noisy, if the expansion valve is functioning, if
there is the expected temperature drop at the condenser, if there may be air blend door
issues, or if the system may have any additional cooling issues. Having a sufficient
MACS Recommended Service Procedures © MACSW December 2005
7 of 23 Revision December 2005
charge of refrigerant in the system will also ensure the system contains adequate
internal pressure for use of an electronic leak detector.
If fluorescent dye is to be used in a leak detection process, it may also be added at this
time.
System Refrigerant Leakage
System refrigerant leaks can occur in many locations where they may be difficult to
visually pinpoint.
Visual inspection for evidence of system lubricant generally indicates potential
refrigerant leak points. When a point is identified, use an SAE certified leak detector to
verify the leak. Except for compressor shaft seals, surfaces that have evidence of
lubricant generally indicate the presence of a refrigerant leak.
In some cases, even though there may be a sign of lubricant leakage at a compressor
shaft seal, the leak may be too small to result in a sufficient release of refrigerant which
could be identified with a leak detector.
The condenser, evaporator and rigid pipes/tubing, unless physically damaged, will not
usually experience leakage. However, these components can be susceptible to
corrosion, which could result in leakage.
In general, operational leakage or mis-assembly of the following system components
can result in system leak points.
• Coupled flexible hose(s)
o At hose and metal coupling connection
o At quick connect points if moved
• Compressor
o Shaft seal
o Porous casting/shell case seals
o Pressure switches and/or o-rings
o Pressure relief valve
• System service ports due to:
o Missing or lost service caps
o Leaking/damaged core valves
MACS Recommended Service Procedures © MACSW December 2005
8 of 23 Revision December 2005
• All refrigerant coupling points
o O-Rings
ƒ Cut/damaged
ƒ Wrong size O-ring (diameter, thickness)
ƒ Residual flush material, sealants, alternate refrigerants
o Flat surface seals – gaskets
ƒ Cut/damaged
ƒ Incorrect torque of connections
ƒ Residual flush material, sealants, alternate refrigerants
Identification of System Refrigerant Leakage
Identification of a small system refrigerant leak may require a combination of leak
detection methods.
If a system has at least 50-psig pressure, the system can be checked with an electronic
leak detector. It should be noted that there is a major difference between the capabilities
of electronic refrigerant leak detectors to find small leaks even though they are certified
to the SAE standard.
Increasing System Refrigerant Pressure for Leak Detection
Elevating the temperature (warming) of all the A/C system components will help
increase the system pressure for leak detection. (It is preferred to work on vehicles
when the ambient temperature is above 70 degrees F.)
Increase System Refrigerant Pressure Procedure (Using Engine Heat)
• A/C System Controls
o Turn compressor off so it will not operate. (Note: On some vehicles,
particularly those equipped with Automatic Temperature Control systems,
this may not be possible. It may be necessary to electrically disable the
clutch by removing the clutch control relay, disconnecting the clutch field
coil’s electrical connector, removing a fuse, etc. Also, some vehicles are
equipped with clutchless compressors. Clutchless compressors operate
any time the engine is running. If a vehicle is equipped with a clutchless
compressor, refer to the vehicle manufacturer’s service information to see
if a procedure exists to operate the engine without the compressor also
operating.)
MACS Recommended Service Procedures © MACSW December 2005
9 of 23 Revision December 2005
• Set panel system controls
o Outside air (not max or recirculated)
o High fan speed
o Airflow from panel outlets
o Temperature position max cold
• Vehicle hood open to allow warm engine air to enter cowl inlet to A/C system
• Operate engine idle condition
o Neutral (park) with parking brake applied
ƒ Depending on engine compartment temperature
ƒ Run engine to warm up A/C system components for 15 minutes
o After idling engine for 15 minutes (hot condition)
o Shut engine and A/C fan off and start the leak detection
process
Other Leak Detection Methods
Soap Bubbles
Using soap bubbles to detect a leak will only identify a large leak. A leak rate producing
1 bubble per second results in a loss of over 50 ounces per year. Since most mobile
systems contain only one half of that amount, they will lose cooling capability within
days. As noted in figure 2 the typical R134a single evaporator system charge is 25.6
ounces.
The information found in figure 2 compares the detection rate of an SAE leak detector of
0.5 ounces per year with water and soap bubble detection methods of 45 to 55 ounces
per year.
The use of soap bubbles may help in verifying the location of large leaks in tight and
hard to access places or near multiple refrigerant connections. Unless the system has a
large refrigerant leak, using soap bubbles for leak detection is an ineffective method
when servicing mobile A/C systems.
MACS Recommended Service Procedures © MACSW December 2005
10 of 23 Revision December 2005
Refrigerant Leak Detection Capability
0
10
20
30
40
50
60
WATER BUBBLE SOAP BUBBLE J1627 SAE SPEC.
Refrigerant Loss Ounces/year
Identifiable Leak Rate
1 bubble per second
SAE Identifiable Leak Rate
0.5 ounce [14g] per year
Average Single Evap.
System Charge
2000 - 2004 MY
25.6 Ounces
Figure 2
Using Nitrogen
Using nitrogen for leak checking is a questionable method due to a lack of nitrogen
detection equipment and nitrogen’s high pressure. For example, if an evaporator core is
subjected to over 300 PSI, it may burst. As the components age, they may fail at
pressure less than 300 PSI.
Nitrogen and soap bubbles have been used in the commercial refrigerant industry on
large systems that are prone to high leakage rates. Using nitrogen and soap bubbles for
locating small leaks in mobile A/C systems is of questionable value.
Using Other Refrigerants
The use of R22 or other chemicals having higher pressure can result in system
damage. Use of R22 for leak checking can result in chemical damage to the system
over time (especially to seals). The R22 cannot be completely removed from the system
after leak checking.
MACS Recommended Service Procedures © MACSW December 2005
11 of 23 Revision December 2005
The R22 remaining in the system’s lubricant may over time chemically damage hose
and seal material resulting in a potential later system failure. Using R22 is never
recommended for use for leak checking. Check system and/or component
manufacturers' policy on using other refrigerants.
Using Trace Dye
When trace dye is installed in the system it requires that the lubricant carry it to the leak
point. This may not be an immediate action and may require hours of system operation,
depending upon the system’s use, before the dye will be visible when using a test lamp.
Dye installed in the system may not be visible depending upon its original expected
lifetime and its visibility can be reduced after being exposed to air (point of leak) and
may not be identifiable the next season. If too much dye is added to the system, it can
affect compressor durability by changing the lubricating ability of the system’s oil and
restricting oil flow through the refrigerant system.
Using Vacuum Decay
Using a vacuum decay method will only confirm you have a leak. Unless very large, it
does not give the location. You may also have a leak in your measuring equipment. In
addition, using a vacuum decay method may not find some leaks, because when the
system is under vacuum the leak point (o-ring – seal – hose) may seal and leak only
when under pressure.
Electronic Detector Component Leak Checking
• Leak test with the engine off
o Do not contaminate the detector probe tip with dirt, grease or expose it to
a direct stream of refrigerant.
o If component being checked is dirty, wipe it off with a clean shop towel or
blow off with dry shop air.
ƒ Do not use cleaners or solvents.
• Detectors may react to their chemical composition.
ƒ Leak test the entire refrigerant system, testing all lines, fittings and
components.
• If a leak is found, continue to test the remainder of the system
for potential additional system leaks.
ƒ Move the probe around the location, at a rate no more than 25 to 50
mm/second (1 to 2 in/second),
MACS Recommended Service Procedures © MACSW December 2005
12 of 23 Revision December 2005
ƒ Hold the sensing probe no more than 5 mm (1/4 in) from the surface
completely around the area being checked.
• Moving the sensing probe slowly and as close as possible to the
component improves the chance of finding a leak.
ƒ Confirm the leak by blowing shop air into the area of the suspected
leak to disperse any refrigerant that may not be due to the suspected
leak.
• Repeat if necessary.
• Blowing out the area with shop air often helps locate the exact
position of large leaks.
• Leak testing of evaporator core
o Run the air conditioning blower on high speed for 15 seconds minimum.
ƒ Turn blower off, wait 5 minutes for the refrigerant to accumulate in the
case.
• Insert the leak detector probe into the
o Blower resistor block opening or
o Evaporator case drain hole if there is no condensation, or
o Since refrigerant is heaver than air, locate the lowest point
in the duct system. Do not rely on an indication of a leak
with the probe located in panel outlet.
o Into the closest opening in the heating/ventilation/air
conditioning case to the evaporator.
ƒ If the detector alarms, an evaporator leak has
apparently been found.
ƒ (Note: On R12 systems there will be a covering of oil
and dirt on the evaporator. On R134a systems there
may not be since the lubricant is water soluble.
Therefore check condensate drain for dye products.)
Leak Detectors Meeting SAE J1627
Depending upon the technology used for a leak detector, false triggering may occur
from foam seals and adhesives used around the evaporator. Some detectors meeting
J1627 are calibrated to detect only R12 and R134a refrigerants, thus eliminating the
possibility of false leak identification.
MACS Recommended Service Procedures © MACSW December 2005
13 of 23 Revision December 2005
System Lubricant Charge
There is no effective way in the field to determine the amount of lubricant that is in a
system. Systems with too much oil can result in reduced cooling capacity. Excessive
lubricant results in the internal coating of the evaporator or condenser resulting in less
heat transfer.
Only the A/C system and component manufacturer’s recommended lubricant type,
viscosity and amount should be used to provide the maximum cooling performance and
compressor durability.
To establish the correct amount of lubricant in a system, each component must be
drained or liquid flushed (using approved chemicals and procedures) and the
manufacturer's recommended lubricant amount for the specific system be added.
System Refrigerant Charge
The system pressure cannot be used to determine the amount of refrigerant in a
system. To assure that the system is operating properly, the refrigerant should be
recovered from the system and the correct amount installed with properly calibrated
charge equipment. “Top Off” service procedures will result in improper refrigerant
charge amounts and is not considered professional servicing.
Establishing System Refrigerant Charge Amount
Mobile A/C systems are operated over a great variation of system loads, from low loads
to hot weather soak and cooldown conditions. To assure that a continuous source of
liquid refrigerant is supplied to the expansion device, the vehicle manufacturer
establishes the charge amount for high load conditions. When the system refrigerant
charge amount is determined, several factors are included in the selection of the charge
value to ensure system performance. These factors include small losses from servicing
procedures and lubricant circulation in the system.
Mobile A/C system refrigerant charging should not be attempted by using high and low
side pressure readings. Using high and low side pressure readings are commonplace
for charging commercial systems, since they generally operate under constant load
conditions. Unlike commercial A/C systems, on any given day, a mobile A/C system
could be required to operate from hot vehicle soak and cooldown to reduced stabilized
MACS Recommended Service Procedures © MACSW December 2005
14 of 23 Revision December 2005
highway cooling demand conditions. Under all these conditions, an adequate amount of
liquid refrigerant must be available to provide maximum system cooling performance.
TXV System
A typical expansion valve system can be found in figure 3. The TXV can either be a
separate in-line device or a block valve located near the evaporator.
Figure 3
The charge curve identified in figure 4 shows the variation in system pressure under
high load conditions for a production system. The factory system charge was
established at 28 ounces. For this condition the system pressure change between 22 to
28 ounces of refrigerant in the system was 5-psig on the high side and 4-psig on the low
side. Depending upon the temperature in the service bay and the load on the A/C
system, it is impossible to duplicate charging conditions that rely upon pressure reading
for every type of mobile A/C system serviced.
Using the pressure values identified on the left side of the flat portion charge curve,
charging to 295-psig high side and 22-psig low side could be in the range of 22 ounces.
With only a slight system refrigerant loss the system would have reduced cooling
performance and the potential for inadequate system lubricant circulation. Charging to
MACS Recommended Service Procedures © MACSW December 2005
15 of 23 Revision December 2005
the right side of the charge in the 30 to 32 ounce range could result in the system being
shut off on a hot day in city traffic. Since the capacity of the receiver-drier limits the
amount of excess refrigerant that can be added to the system, systems that incorporate
the integral receiver-drier/condenser design have less internal refrigerant storage
capability as compared to a separate RD system. The correct factory refrigerant charge
is required to avoid overcharging the system.
System Charge Curve
108F Ambient 40 MPH
78
65 61 61 60 60 58 57
16 20 22 24 26 28 30 32
225
260
295 295 295 300 310
345
0
50
100
150
200
250
300
350
16 20 22 24 26 28 30 32
Ounces R134a
Outlet Temperature Suction Pressure Head Pressure
System
Charge 28
Ounces
Head Pressure PSIG
Suction Pressure PSIG
Panel Outlet
Temperature Degrees
Figure 4
Refrigerant Overcharge Symptoms
A typical system overcharge problem may not be evident on a cool morning or in the
service bay during low heat load conditions. Excess refrigerant will result in increased
high side system pressure, when the system is operated during high heat load
conditions. The excessive pressure will cause the high side pressure switch to shut off
the compressor when conditions such as idle and stop and go driving are encountered.
Although an electric or mechanically engine driven fan should be operating during low
speed operation, the amount of airflow may not be enough to handle the heat load.
Considering that most passenger cars and light trucks have electric engine cooling
fan(s), during idle conditions, the effect of wind can influence airflow through the
condenser. Side or tail wind during city traffic and idle conditions can result in loss of
A/C system cooling due to the pressure discharge (PD) switch shutting off the
MACS Recommended Service Procedures © MACSW December 2005
16 of 23 Revision December 2005
compressor. At road speeds, increased airflow over the condenser allows the
compressor to re-engage, but may still result in higher discharge pressures, causing
warmer outlet air temperatures.
Orifice Tube System
A typical orifice tube system can be found in figure 5.
Figure 5
The charge curve in figure 6 is for an orifice tube system having a factory refrigerant
charge of 26 ounces. As compared to the TXV system, the high side curve is more
gradual as additional refrigerant is added. This is due to the refrigerant being stored in
the accumulator on the low side of the system.
MACS Recommended Service Procedures © MACSW December 2005
17 of 23 Revision December 2005
Figure 6
With professional service equipment, less time will be consumed installing the correct
system refrigerant charge, ensuring the proper operation of the A/C system as
compared to charging by questionable gauge pressure readings. Not being able to
identify how much refrigerant is in the system results in the potential for improper
system operation. Systems that are overcharged become an environmental concern
due to the potential release of the excess refrigerant. Systems not having the correct
refrigerant charge may result in many unseen problems.
Low refrigerant charge can result in:
Poor system performance; evaporator core refrigerant distribution problems can result
in temperature spread across panel outlets and localized core icing (freeze up),
reducing system airflow. Reduced cooling performance will occur due to a lack of solid
flow of liquid refrigerant (partial vapor) being supplied to the evaporator under high
loads.
Since lubricant circulation in the system relies upon a proper system refrigerant charge,
inadequate refrigerant and lubricant will result in increased compressor operating
MACS Recommended Service Procedures © MACSW December 2005
18 of 23 Revision December 2005
temperature and potential compressor failure. In addition, the excess temperature can
result in damage to the lubricant, flexible hoses and seals. Not all lubrications are
compatible with a mobile A/C system. There are some lubricants which will not be
transported in sufficient quantities to service the compressor.
The information found in figure 7 compares a reduced system refrigerant charge’s effect
on the compressor discharge temperature. This is something that is not identifiable by
just looking at the system operating pressures. The production charge for this system is
26 ounces. By reducing the charge by 6 ounces (to 20 ounces) the high side pressure
was reduced by 21 psig (from 239 to 218) and the low side pressure was 6 psig lower
(from 38 to 32). Panel outlet temperature is four degrees cooler with the 6 ounce
reduced charge (58 vs. 62). Unfortunately, when charging the system by using the
pressure and panel outlet temperature, a reduced system charge could occur. The
undetectable temperature problem is the compressor outlet temperature, which
increased from 150 F to 182 F for the reduced 6-ounce charge, and with a reduced
charge of 8 ounces was 204 degrees F.
Figure 7
MACS Recommended Service Procedures © MACSW December 2005
19 of 23 Revision December 2005
Compressor Failure
Should a system experience an internal compressor failure, it may not be possible to
completely clean the system of the debris from the failure. Since heat exchangers
(evaporator/condenser) have very small multiple internal passages and internal baffles,
flushing may not clean all passes returning the heat exchanger to its expected level of
performance. Replacement of an orifice tube or replacing the expansion valve must be
done to assure maximum performance. Replacement of the accumulator or receiver
dryer is necessary when an internal compressor failure has occurred. Flushing of
flexible hoses and refrigerant lines is may be required as well as the installation of
auxiliary filters or compressor screens. Hose assemblies having inline mufflers should
be replaced, since flushing may not remove all the debris from the failure. Liquid lines
that contain permanent orifice tubes must be replaced. Installation of non-restrictive inline
filters minimizes the chances of the re-circulation of any foreign material remaining
in the system. Movement of debris can reverse flow from the system high side to low
side when the system is shut off and equalizes, resulting in the contamination of low
side components (the accumulator and evaporator).
Refrigerant Removal
It is extremely difficult to completely remove all refrigerant from the system. When the
system is being evacuated, the refrigerant boiling (changing from liquid to vapor state)
results in cooling of the system components. The lubricant also adsorbs the refrigerant
and the evacuation process is slow in removing the refrigerant from the lubricant.
Raising the temperature (warming) of all the A/C system components and reducing the
system to at least 20 inches of vacuum, will help recover the maximum amount of the
refrigerant in the shortest period of time.
Removal Procedure
o Turn off the compressor so it will not operate. (Note: On some vehicles,
particularly those equipped with Automatic Temperature Control systems,
this may not be possible. It may be necessary to electrically disable the
clutch by removing the clutch control relay, disconnecting the clutch field
coil’s electrical connector, removing a fuse, etc. Also, some vehicles are
equipped with clutchless compressors. Clutchless compressors operate
any time the engine is running. If a vehicle is equipped with a clutchless
MACS Recommended Service Procedures © MACSW December 2005
20 of 23 Revision December 2005
compressor, refer to the vehicle manufacturer’s service information to see
if a procedure exists to operate the engine without the compressor also
operating.)
• Set panel system controls
o Outside air (not max or recirculated)
o High fan speed
o Airflow from panel outlets
• Vehicle hood open to allow warm engine air to enter cowl inlet to A/C system
• Operate engine idle condition
o Neutral (park) with parking brake applied
ƒ Depending on engine compartment temperature
• Run engine to warm up A/C system components for 15 minutes
• After idling engine for 15 minutes (hot condition)
• With engine idling and A/C fan high, system on outside air, start
refrigerant recovery process
• When refrigerant recovery is completed, including the required 5
minute recheck for system pressure (system refrigerant out
gassing), shut vehicle and equipment off.
Desiccant Replacement
The purpose of desiccant in a mobile air conditioning system is to absorb and hold
moisture. Moisture in a system (above an acceptable level) can lead to corrosion and
degradation of the lubricant. The general industry recommended desiccant
replacement service guidelines are found in table1.
Desiccant material is located in the refrigerant circuit. Servicing of the desiccant will
depend upon its location. The location may not allow the replacement of only the
desiccant material, resulting in the replacement of an accumulator, or a receiver drier
assembly. Systems having an integral receiver drier condenser assembly may have the
service feature that allows replacement of the desiccant pack.
MACS Recommended Service Procedures © MACSW December 2005
21 of 23 Revision December 2005
Table 1 Recommended Guidelines for Replacement of Desiccant
Service Operation Replace RD/Accl or Desiccant Pack Yes
w/Replace Compressor
(Ref System contains foreign material)
X
w/Replace Evaporator
(Ref System contains foreign material)
X
w/Replace Condenser
(Ref System contains foreign material)
X
w/Replace refrigerant line or hose
(Ref System contains foreign material)
X
w/Replace Refrigerant Control OT/TXV
(Ref System contains foreign material)
X
w/System has open line(s)
more that 24 hours
X
w/System has operated over 5 years without desiccant
replacement in high humidity area
X
w/System has operated over 10 years without desiccant
replacement
X
Desiccant Replacement Guidelines
Desiccant replacement guidelines vary among vehicle manufacturers and system,
component and parts suppliers. To maintain the warranty on purchased parts, desiccant
must be replaced as specified by the particular supplier whose parts are being installed.
Flushing Systems
Flushing of the mobile A/C system may not completely remove all potential foreign
material from the system. Proper use of flushing solvents is important to accomplish the
desired results. It is necessary to purge all residual flush material from the system when
servicing. Any residual flush left behind will contaminate and dilute the A/C system oil
charge.
SAE standard J2670 provides testing and acceptance criteria for stability and compatibility of
chemicals, including flushing materials and additives intended for use in R134a vehicle air
conditioning systems. Use of non-compatible chemicals may result in future (extended time)
failure of A/C system materials.
MACS Recommended Service Procedures © MACSW December 2005
22 of 23 Revision December 2005
Flushing Material
R134a is commonly used as a flushing solvent in conjunction with equipment capable of
handling the refrigerant in such a manner. Because R134a can act as both the
refrigerant and a flushing solvent, R134a is deemed to meet all the requirements set
forth in the J2670 specification. Keep ion mind that R134a should only be used to flush
lubricant and loose debris from an A/C system. R134a will not remove any particulate
matter that has attached itself to the inner tube walls.
Some A/C system and component manufacturers have developed flushing solvents and
equipment for removal of foreign material from the system.
In general, flushing provides a method of removing:
-- Lubricant
-- Residual materials found in the system
-- Foreign material
Removal of some foreign debris may not be achievable in heat exchangers due to the multipath
circuits and the potential for the flushing procedure to bypass the plugged refrigerant flow
path. To achieve the original level of performance, replacement of the heat exchanger may be
required.
In flushing a contaminated system, follow the procedures provided by the system or component
manufacturer and by using the recommend flushing material and equipment.
Evaporator Freeze Protection
Loss of system cooling performance can occur if the system has an incorrect evaporator
freeze protection setting. This condition can occur when the system has been operated
for an extended period of time. When the evaporator fin surface is operated below 32
degrees F, the collected condensate water will turn to ice. This will then result in loss of
system airflow as the frozen water blocks the air passages and the icing condition
continues to spread over the core area.
With an incorrect control setting, this loss of cooling can occur on systems that use a
fixed displacement or variable displacement compressor. There are many options on
how evaporator freeze protection is achieved. Some of the control methods include
pressure control devices in the compressor body or attached to other refrigerant system
MACS Recommended Service Procedures © MACSW December 2005
23 of 23 Revision December 2005
components. Other options include electronic sensors or thermal switches controlling
compressor operation by sensing refrigerant component surface or outlet air
temperature.
It is important to identify how the system manufacturer controls evaporator freeze
protection and that the correct pressure or temperature settings are used when
servicing the system.
AIR CONDITIONING & HEATING CUSTOMER QUESTIONNAIRE
_______________________________________________________ CUSTOMER
Name__________________________ Phone__________________ Date__________
Address________________________ City______________ State_____ Zip_______
_______________________________________________________ VEHICLE
Year____________ Make____________ Model____________ Color____________
A/C System Type – ❒ Manual ❒ Auto. Temp. Control ❒ Dual / Rear Auxiliary Unit
_______________________________________________________
PROBLEM / SYMPTOM
‰ No A/C ‰ No Heat ‰ No Defrost ‰ Poor Cooling ‰ Poor Heating
‰ Improper
Fan/Blower
Operation
‰ Air From
Wrong
Outlet(s)
‰ No
Temperature
Control
‰ Noise Inside
Car
‰ Noise Under
Hood
‰ Interior
Water Leak
‰ Engine
Coolant Leak
‰ Warning
Light(s) On
‰ Odor ‰ Other*
(See Below)
WHEN DOES THE PROBLEM OCCUR?
‰ Always ‰ Intermittent ‰ When Hot ‰ When Cold ‰ At Start Up
‰ During Warm
Up
‰ At Idle ‰ High Engine
Speeds
‰ Driving Away
From Stop
‰ At Road
Speeds
Have there been any previous attempts to repair this problem? ❒ No ❒ Yes
If there were previous repair attempts, what was done? (What parts were installed, etc.)
_____________________________________________________________________________
_____________________________________________________________________________
Did previous repairs help the problem? ❒ No ❒ Some ❒ A lot ❒ At first, but not now.
Have repairs or service of any kind been recently performed to the vehicle? ❒ No ❒ Yes
If so, exactly what was done?
______________________________________________________________________
______________________________________________________________________
*FURTHER DESCRIPTION OF THE PROBLEM
______________________________________________________________________
______________________________________________________________________
Click Here To See More Carley Automotive Technical Articles
More Air Conditioning Articles:
